verticapy.vDataFrame.chaid

vDataFrame.chaid(response: str, columns: Annotated[str | list[str], 'STRING representing one column or a list of columns'], nbins: int = 4, method: Literal['smart', 'same_width'] = 'same_width', RFmodel_params: dict | None = None, **kwargs) → NonBinaryTree

Returns a CHAID (Chi-square Automatic Interaction Detector) tree. CHAID is a decision tree technique based on adjusted significance testing (Bonferroni test).

Parameters

response: str

Categorical response vDataColumn.

columns: SQLColumns

List of the vDataColumn names. The maximum number of categories for each categorical column is 16; categorical columns with a higher cardinality are discarded.

nbins: int, optional

Integer in the range [2,16], the number of bins used to discretize the numerical features.

method: str, optional

The method with which to discretize the numerical vDataColumns, one of the following:

• same_width:

  Computes bins of regular width.

• smart:

  Uses a random forest model on a response column to find the best interval for discretization.

RFmodel_params: dict, optional

Dictionary of the parameters of the random forest model used to compute the best splits when ‘method’ is ‘smart’. If the response column is numerical (but not of type int or bool), this function trains and uses a random forest regressor. Otherwise, this function trains a random forest classifier. For example, to train a random forest with 20 trees and a maximum depth of 10, use: {"n_estimators": 20, "max_depth": 10}

Returns

NonBinaryTree

An independent model containing the result.

Examples

For this example, we will use the Titanic dataset.

import verticapy.datasets as vpd

data = vpd.load_titanic()

	123 pclass Integer	123 survived Integer	Abc Varchar(164)	Abc sex Varchar(20)	123 age Numeric(8)	123 sibsp Integer	123 parch Integer	Abc ticket Varchar(36)	123 fare Numeric(12)	Abc cabin Varchar(30)	Abc embarked Varchar(20)	Abc boat Varchar(100)	123 body Integer	Abc Varchar(100)
1	1	0		male	71.0	0	0	PC 17609	49.5042	[null]	C	[null]	22
2	1	0		male	45.0	0	0	113784	35.5	T	S	[null]	[null]
3	1	0		male	[null]	0	0	113798	31.0	[null]	S	[null]	[null]
4	1	0		male	17.0	0	0	113059	47.1	[null]	S	[null]	[null]
5	1	0		male	27.0	1	0	13508	136.7792	C89	C	[null]	[null]
6	1	0		male	37.0	1	1	PC 17756	83.1583	E52	C	[null]	[null]
7	1	0		male	31.0	1	0	F.C. 12750	52.0	B71	S	[null]	[null]
8	1	0		male	50.0	1	0	PC 17761	106.425	C86	C	[null]	62
9	1	0		female	36.0	0	0	PC 17531	31.6792	A29	C	[null]	[null]
10	1	0		male	37.0	1	0	113803	53.1	C123	S	[null]	[null]
11	1	0		male	24.0	0	0	PC 17593	79.2	B86	C	[null]	[null]
12	1	0		male	45.0	1	0	36973	83.475	C83	S	[null]	[null]
13	1	0		male	40.0	0	0	112059	0.0	B94	S	[null]	110
14	1	0		male	42.0	0	0	113038	42.5	B11	S	[null]	[null]
15	1	0		male	[null]	0	0	17463	51.8625	E46	S	[null]	[null]
16	1	0		male	42.0	1	0	113789	52.0	[null]	S	[null]	38
17	1	0		male	[null]	0	0	PC 17600	30.6958	[null]	C	14	[null]
18	1	0		male	29.0	0	0	113501	30.0	D6	S	[null]	126
19	1	0		male	46.0	0	0	13050	75.2417	C6	C	[null]	292
20	1	0		male	54.0	0	0	17463	51.8625	E46	S	[null]	175
21	1	0		male	47.0	0	0	113796	42.4	[null]	S	[null]	[null]
22	1	0		male	58.0	0	2	35273	113.275	D48	C	[null]	122
23	1	0		male	45.5	0	0	113043	28.5	C124	S	[null]	166
24	1	0		male	29.0	1	0	113776	66.6	C2	S	[null]	[null]
25	1	0		male	47.0	0	0	110465	52.0	C110	S	[null]	207
26	1	0		male	38.0	0	0	19972	0.0	[null]	S	[null]	[null]
27	1	0		male	22.0	0	0	PC 17760	135.6333	[null]	C	[null]	232
28	1	0		male	31.0	0	0	PC 17590	50.4958	A24	S	[null]	[null]
29	1	0		male	50.0	1	0	13507	55.9	E44	S	[null]	[null]
30	1	0		male	56.0	0	0	17764	30.6958	A7	C	[null]	[null]
31	1	0		male	57.0	1	0	PC 17569	146.5208	B78	C	[null]	[null]
32	1	0		female	63.0	1	0	PC 17483	221.7792	C55 C57	S	[null]	[null]
33	1	0		male	61.0	0	0	36963	32.3208	D50	S	[null]	46
34	1	0		male	21.0	0	1	35281	77.2875	D26	S	[null]	169
35	1	0		male	51.0	0	1	PC 17597	61.3792	[null]	C	[null]	[null]
36	1	1		female	63.0	1	0	13502	77.9583	D7	S	10	[null]
37	1	1		female	32.0	0	0	11813	76.2917	D15	C	8	[null]
38	1	1		female	58.0	0	0	113783	26.55	C103	S	8	[null]
39	1	1		female	44.0	0	0	PC 17610	27.7208	B4	C	6	[null]
40	1	1		female	41.0	0	0	16966	134.5	E40	C	3	[null]
41	1	1		female	53.0	0	0	PC 17606	27.4458	[null]	C	6	[null]
42	1	1		male	36.0	0	1	PC 17755	512.3292	B51 B53 B55	C	3	[null]
43	1	1		female	58.0	0	1	PC 17755	512.3292	B51 B53 B55	C	3	[null]
44	1	1		male	11.0	1	2	113760	120.0	B96 B98	S	4	[null]
45	1	1		female	76.0	1	0	19877	78.85	C46	S	6	[null]
46	1	1		female	[null]	0	1	113505	55.0	E33	S	6	[null]
47	1	1		female	39.0	1	1	PC 17756	83.1583	E49	C	14	[null]
48	1	1		female	27.0	1	2	F.C. 12750	52.0	B71	S	3	[null]
49	1	1		female	[null]	0	0	17421	110.8833	[null]	C	4	[null]
50	1	1		female	35.0	0	0	113503	211.5	C130	C	4	[null]
51	1	1		female	22.0	0	1	112378	59.4	[null]	C	7	[null]
52	1	1		female	25.0	1	0	11765	55.4417	E50	C	5	[null]
53	1	1		male	48.0	1	0	PC 17572	76.7292	D33	C	3	[null]
54	1	1		female	35.0	1	0	36973	83.475	C83	S	D	[null]
55	1	1		male	27.0	0	0	PC 17572	76.7292	D49	C	3	[null]
56	1	1		female	24.0	0	0	11767	83.1583	C54	C	7	[null]
57	1	1		female	52.0	1	1	12749	93.5	B69	S	3	[null]
58	1	1		female	44.0	0	1	111361	57.9792	B18	C	4	[null]
59	1	1		female	15.0	0	1	24160	211.3375	B5	S	2	[null]
60	1	1		male	30.0	1	0	13236	57.75	C78	C	11	[null]
61	1	1		female	31.0	1	0	35273	113.275	D36	C	6	[null]
62	1	1		female	39.0	0	0	PC 17758	108.9	C105	C	8	[null]
63	1	1		female	22.0	0	1	113509	61.9792	B36	C	5	[null]
64	1	1		male	52.0	0	0	113786	30.5	C104	S	6	[null]
65	1	1		female	43.0	0	1	24160	211.3375	B3	S	2	[null]
66	1	1		female	33.0	0	0	110152	86.5	B77	S	8	[null]
67	1	1		male	45.0	1	1	16966	134.5	E34	C	3	[null]
68	1	1		female	40.0	1	1	16966	134.5	E34	C	3	[null]
69	1	1		male	48.0	1	0	19996	52.0	C126	S	5 7	[null]
70	1	1		female	[null]	0	0	PC 17585	79.2	[null]	C	D	[null]
71	1	1		female	35.0	0	0	PC 17755	512.3292	[null]	C	3	[null]
72	1	1		female	60.0	1	0	110813	75.25	D37	C	5	[null]
73	1	1		male	21.0	0	1	PC 17597	61.3792	[null]	C	A	[null]
74	2	0		male	23.0	0	0	C.A. 31030	10.5	[null]	S	[null]	[null]
75	2	0		male	28.0	0	0	244358	26.0	[null]	S	[null]	[null]
76	2	0		male	60.0	1	1	29750	39.0	[null]	S	[null]	[null]
77	2	0		female	44.0	1	0	244252	26.0	[null]	S	[null]	[null]
78	2	0		male	29.0	1	0	2003	26.0	[null]	S	[null]	[null]
79	2	0		male	18.0	0	0	S.O.C. 14879	73.5	[null]	S	[null]	[null]
80	2	0		male	18.0	0	0	S.O.C. 14879	73.5	[null]	S	[null]	[null]
81	2	0		male	54.0	0	0	28403	26.0	[null]	S	[null]	[null]
82	2	0		male	18.0	0	0	236171	13.0	[null]	S	[null]	[null]
83	2	0		male	36.0	0	0	229236	13.0	[null]	S	[null]	236
84	2	0		male	34.0	1	0	28664	21.0	[null]	S	[null]	[null]
85	2	0		male	21.0	1	0	28133	11.5	[null]	S	[null]	[null]
86	2	0		male	21.0	1	0	28134	11.5	[null]	S	[null]	[null]
87	2	0		male	24.0	0	0	233866	13.0	[null]	S	[null]	155
88	2	0		male	34.0	0	0	12233	13.0	[null]	S	[null]	[null]
89	2	0		male	30.0	0	0	250653	13.0	[null]	S	[null]	75
90	2	0		male	44.0	0	0	248746	13.0	[null]	S	[null]	35
91	2	0		male	49.0	1	2	220845	65.0	[null]	S	[null]	[null]
92	2	0		male	21.0	2	0	S.O.C. 14879	73.5	[null]	S	[null]	[null]
93	2	0		male	21.0	0	0	S.O.C. 14879	73.5	[null]	S	[null]	[null]
94	2	0		female	60.0	1	0	24065	26.0	[null]	S	[null]	[null]
95	2	0		male	24.0	2	0	C.A. 31029	31.5	[null]	S	[null]	[null]
96	2	0		male	22.0	2	0	C.A. 31029	31.5	[null]	S	[null]	[null]
97	2	0		male	35.0	0	0	233734	12.35	[null]	Q	[null]	[null]
98	2	0		male	31.0	0	0	C.A. 18723	10.5	[null]	S	[null]	165
99	2	0		male	36.0	0	0	SC/Paris 2163	12.875	D	C	[null]	[null]
100	2	0		male	[null]	0	0	SC/A.3 2861	15.5792	[null]	C	[null]	[null]

Rows: 1-100 | Columns: 14

Note

VerticaPy offers a wide range of sample datasets that are ideal for training and testing purposes. You can explore the full list of available datasets in the Datasets, which provides detailed information on each dataset and how to use them effectively. These datasets are invaluable resources for honing your data analysis and machine learning skills within the VerticaPy environment.

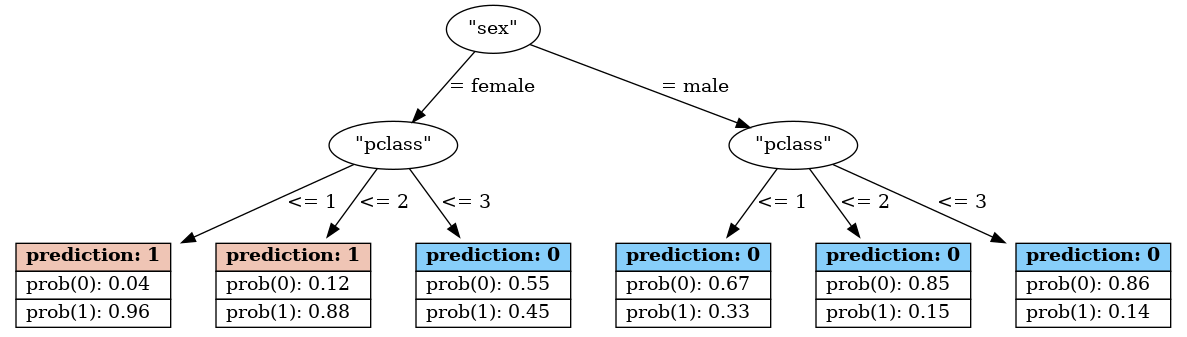

We can conveniently get the CHAID tree:

tree = data.chaid(
    response = "survived",
    columns = ["sex", "pclass"],
)
tree.plot_tree()

Note

The result is an InMemoryModel model. Refer to NonBinaryTree for more information on the different methods and possibilities.

See also

vDataFrame.chaid_columns() : Returns the columns picked by the CHAID algorithm
