Vertica::ScalarFunctionFactory Class Referenceabstract

Interface for declaring parameters and return types for, and instantiating, an associated ScalarFunction. More...

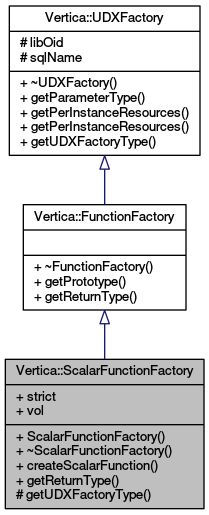

Inheritance diagram for Vertica::ScalarFunctionFactory:
Inheritance graph
Collaboration diagram for Vertica::ScalarFunctionFactory:
Collaboration graph

Public Types

enum  UDXType {
  SCALAR = 1, TRANSFORM = 2, ANALYTIC = 3, MULTI_TRANSFORM = 4,
  AGGREGATE = 5, LOAD_SOURCE = 6, LOAD_FILTER = 7, LOAD_PARSER = 8,
  FILESYSTEM = 9, TYPE = 10, CURSOR_TRANSFORM = 11
}


Public Member Functions

virtual ScalarFunction * createScalarFunction (ServerInterface &srvInterface)=0

virtual void getParameterType (ServerInterface &srvInterface, SizedColumnTypes &parameterTypes)

virtual void getPerInstanceResources (ServerInterface &srvInterface, VResources &res)

virtual void getPerInstanceResources (ServerInterface &srvInterface, VResources &res, const SizedColumnTypes &inputTypes)

virtual void getPrototype (ServerInterface &srvInterface, ColumnTypes &argTypes, ColumnTypes &returnType)=0

virtual void getReturnType (ServerInterface &srvInterface, const SizedColumnTypes &argTypes, SizedColumnTypes &returnType) __override__


Public Attributes

strictness strict

volatility vol


Protected Member Functions

virtual UDXType getUDXFactoryType () __override__


Protected Attributes

Oid libOid

std::string sqlName


Detailed Description

Interface for declaring parameters and return types for, and instantiating, an associated ScalarFunction.

Member Enumeration Documentation

enum Vertica::UDXFactory::UDXType
inherited

The type of UDX instance this factory produces

Enumerator
SCALAR

*/

Member Function Documentation

virtual ScalarFunction* Vertica::ScalarFunctionFactory::createScalarFunction ( ServerInterface &  srvInterface)
pure virtual
Returns
an ScalarFunction object which implements the UDx API described by this metadata.
Parameters
srvInterfacea ServerInterface object used to communicate with Vertica
Note
More than one object may be instantiated per query.
virtual void Vertica::UDXFactory::getParameterType ( ServerInterface &  srvInterface,
SizedColumnTypes &  parameterTypes
)
inlinevirtualinherited

Function to tell Vertica the name and types of parameters that this function uses. Vertica will use this to warn function callers that certain parameters they provide are not affecting anything, or that certain parameters that are not being set are reverting to default values.

virtual void Vertica::UDXFactory::getPerInstanceResources ( ServerInterface &  srvInterface,
VResources &  res
)
inlinevirtualinherited

Set the resource required for each instance of the UDX Object subclass. Users should override only one of the following methods.

Parameters
srvInterfacea ServerInterface object used to communicate with Vertica
resa VResources object used to tell Vertica what resources are needed by the UDX
virtual void Vertica::UDXFactory::getPerInstanceResources ( ServerInterface &  srvInterface,
VResources &  res,
const SizedColumnTypes &  inputTypes
)
inlinevirtualinherited

Set the resource required for each instance of the UDX Object subclass. Users should override only one of the following methods.

Parameters
srvInterfacea ServerInterface object used to communicate with Vertica
resa VResources object used to tell Vertica what resources are needed by the UDX
argTypesProvides the data types of arguments that this UDT was called with
virtual void Vertica::FunctionFactory::getPrototype ( ServerInterface &  srvInterface,
ColumnTypes &  argTypes,
ColumnTypes &  returnType
)
pure virtualinherited

Provides the argument and return types of the UDX

virtual void Vertica::ScalarFunctionFactory::getReturnType ( ServerInterface &  srvInterface,
const SizedColumnTypes &  argTypes,
SizedColumnTypes &  returnType
)
inlinevirtual

For scalar functions, this function needs to be overridden only if the return type needs length/precision specification.

Parameters
srvInterfacea ServerInterface object used to communicate with Vertica
argTypesThe data type of the return value defined by processBlock()
returnTypeThe size of the data returned by processBlock()

Implements Vertica::FunctionFactory.

virtual UDXType Vertica::ScalarFunctionFactory::getUDXFactoryType ( )
inlineprotectedvirtual
Returns
the object type internally used by Vertica

Implements Vertica::UDXFactory.

Member Data Documentation

volatility Vertica::ScalarFunctionFactory::vol

Strictness and Volatility settings that the UDSF programmer can set Defaults are VOLATILE and CALLED_ON_NULL_INPUT
